Wrangle Node Example - User Defined Functions

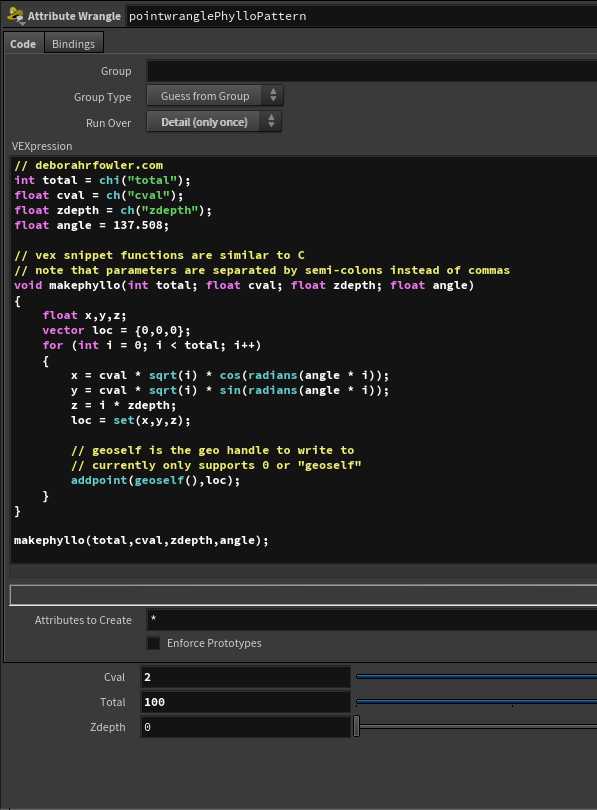

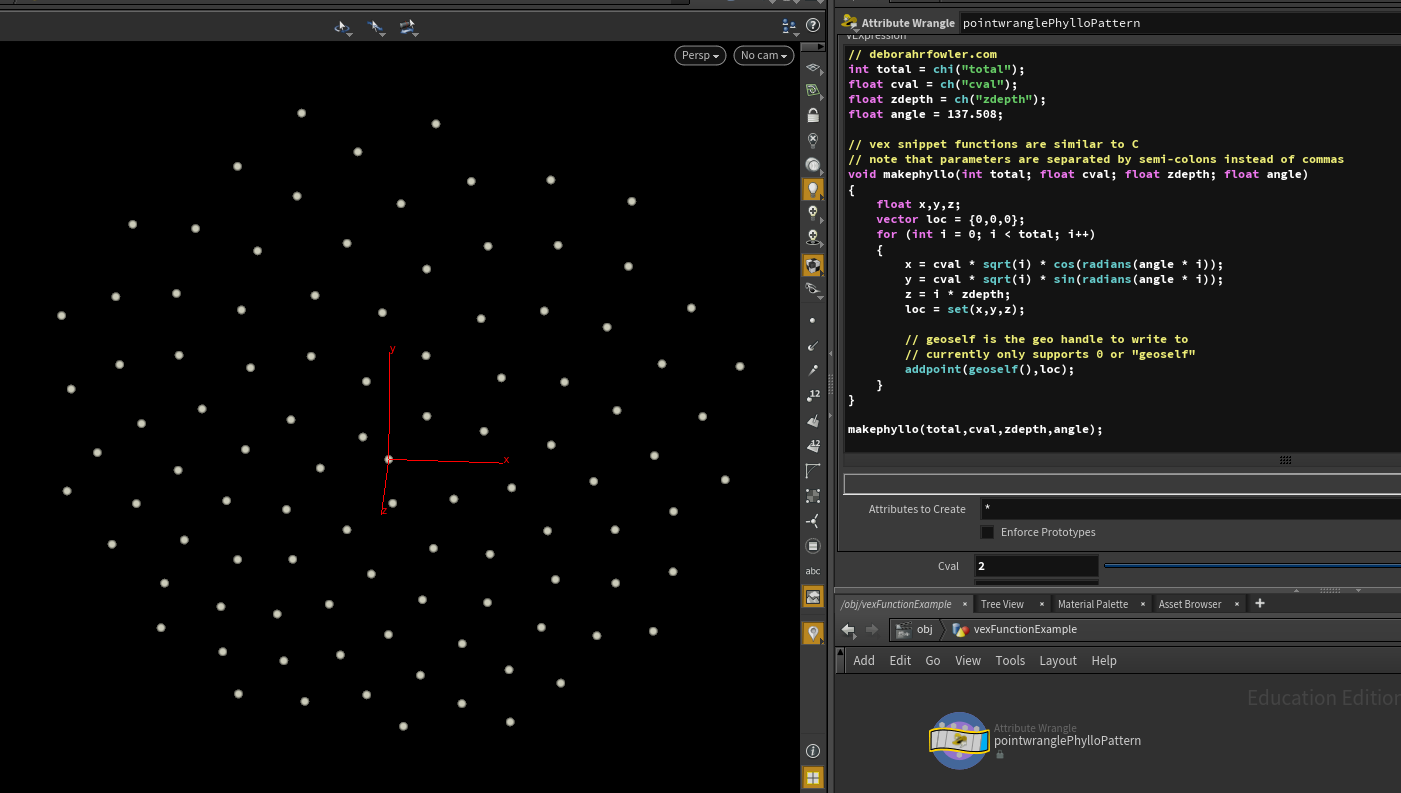

Along with many built-in functions, user defined functions can be created in vex. Here is an example using the phyllotactic pattern:

Looking closer at the code, it is similar to the previous phyllotactic pattern example, except now the code is encased in a user-defined function.

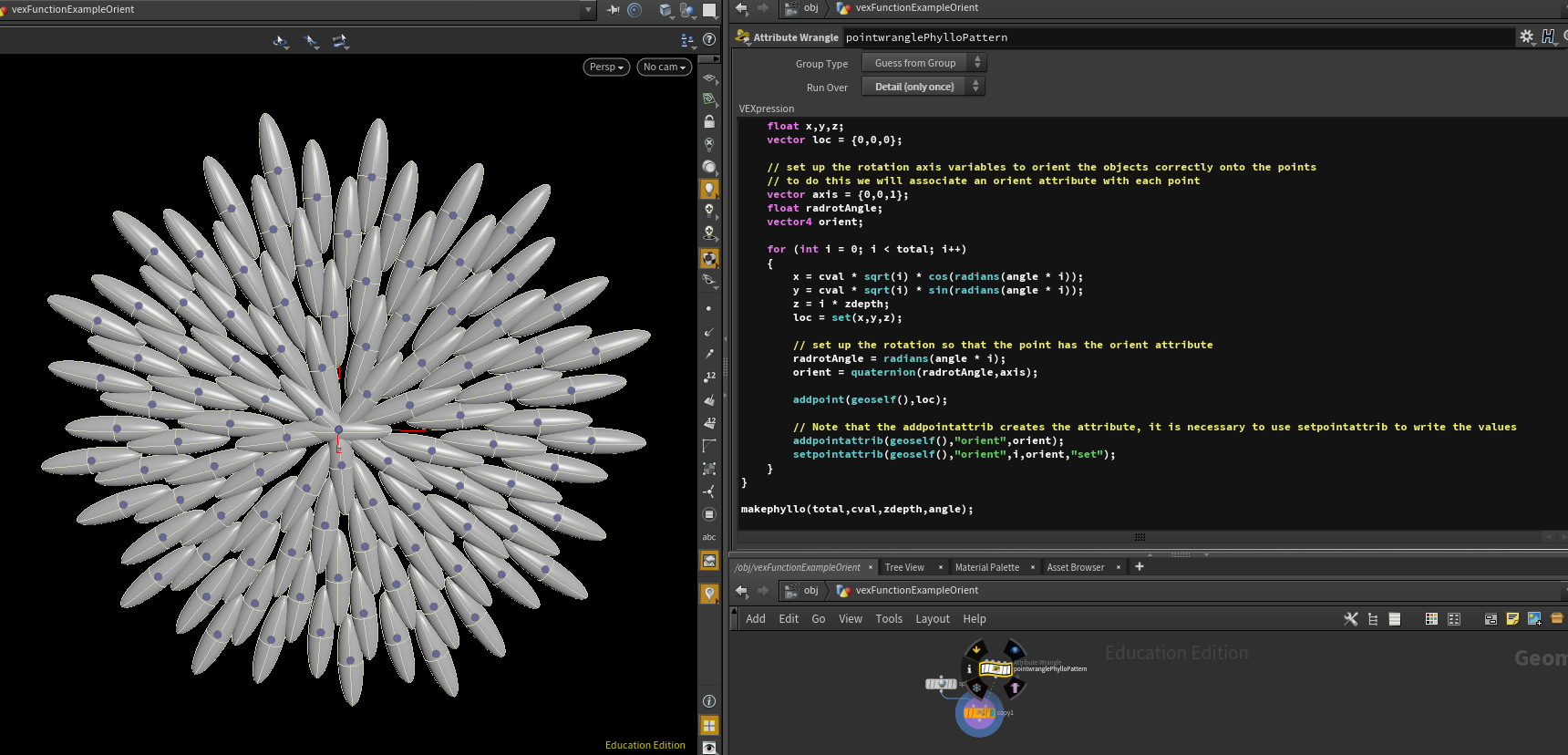

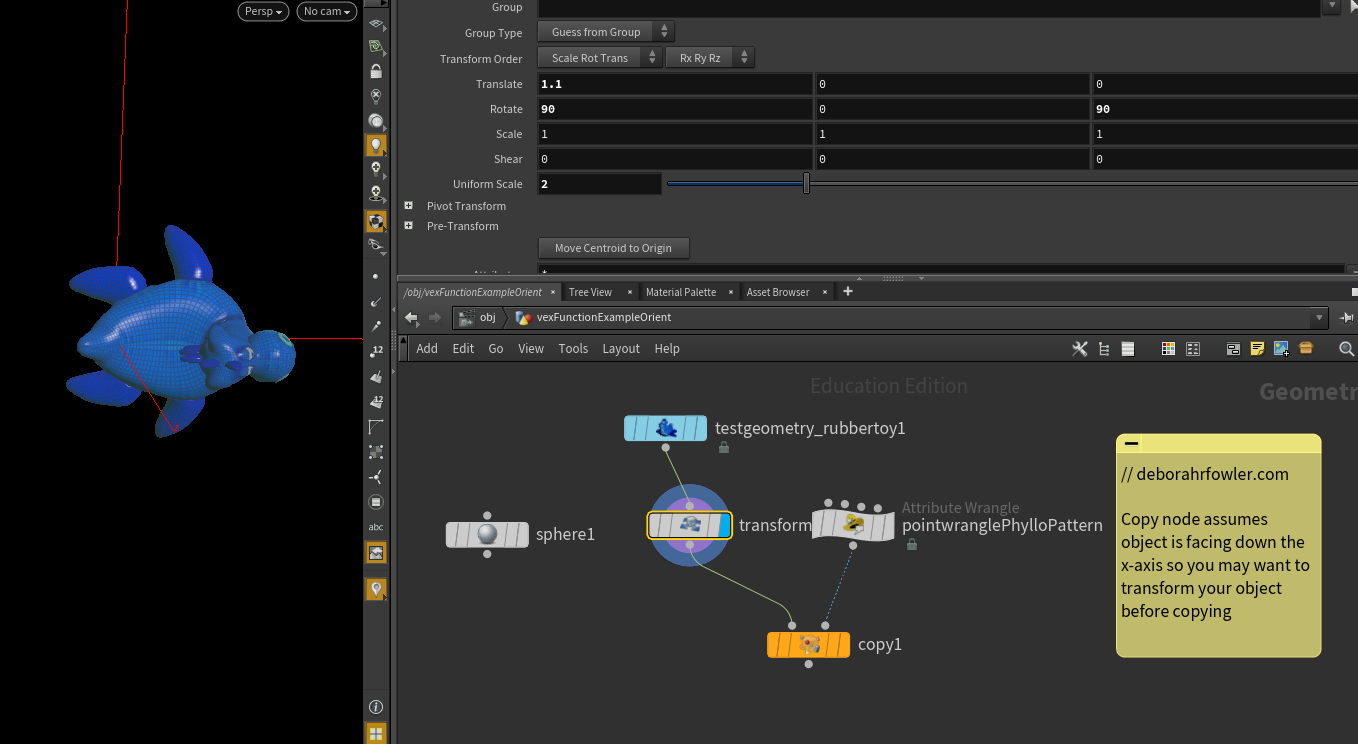

Going a bit further and adding elements with orientation using the orient attribute.

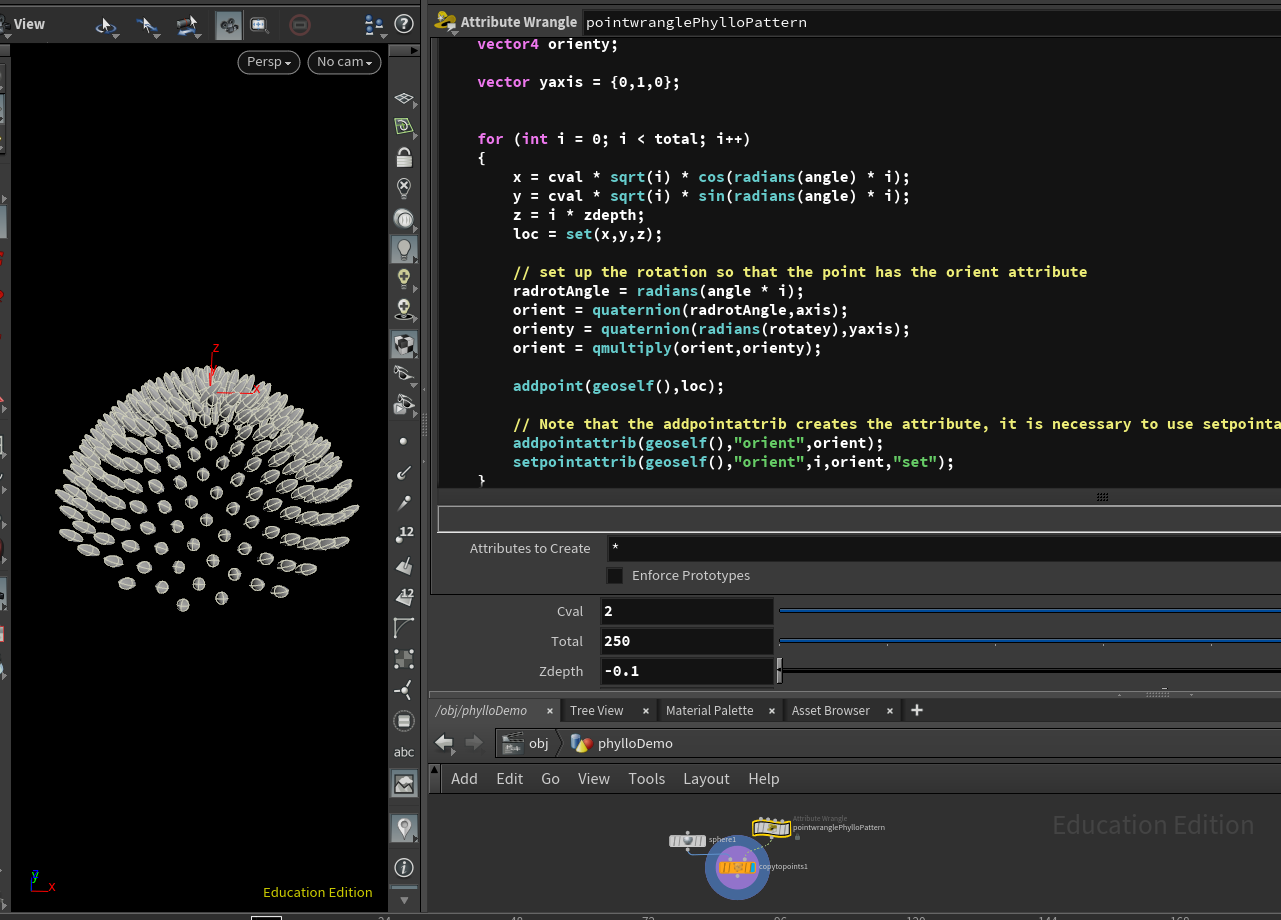

You can also combine quaternions with qmultiply. See below:

A comparison of N/up attributes vs orient (I think orient is easier to use but someone asked so...) — sample hip file
