Deborah R. Fowler
Wrangle Node Example - Torus
Example File
torusBlowUpRestore.hipnc
is explained below.This example is based on an expressions tutorial to blow a torus up from a since removed tutorial on expressions from SideFX back in H9. I have created and updated this example using point wrangles as seen in my file
Example File
torusBlowUp.hipnc
. I also added blending from another demo and implemented
this with a sequence blend, point vop and finally updated to use
point wrangles.
The points are
- "uniqued" on each facet
- facets scaled to zero
- sorted by primitive number
- noised the position thru a particle node

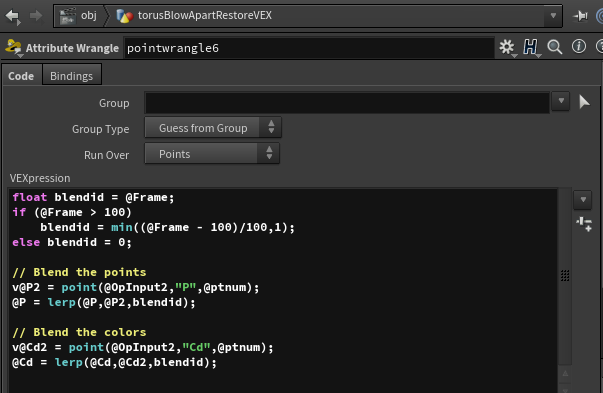

- pointwrangle mixes using the lerp function to blend them back together
The syntax I used here was v@P2 = point(@OpInput2,"P",@ptnum);
