Wrangle Node Example - Fur Tree

Posted May 2 2018 Updated April 24 2026

Fur Tree starter file:

Example File hipnc available

The goal in this example was to create a simple "fur" tree to demonstrate the fur node (as opposed to the hair fur tool).

Twigs are created using add, polyspline, and polywire

Twigs are populated with curves using the fur node and the twigs are then copied onto the main trunk.

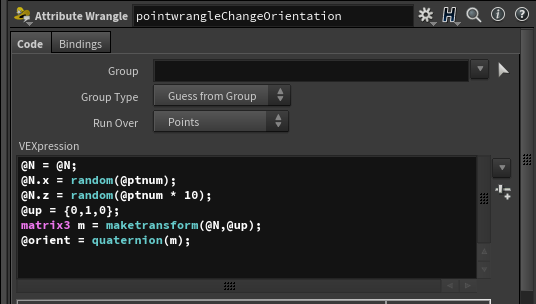

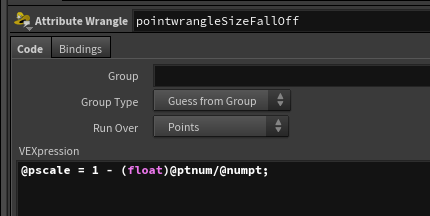

The single "fur" tree is then instanced with variation in size (pscale) and in rotation (orient).


Note that you could also use inexpensive geo such as tubes, or cards (sprites) for distance trees.
